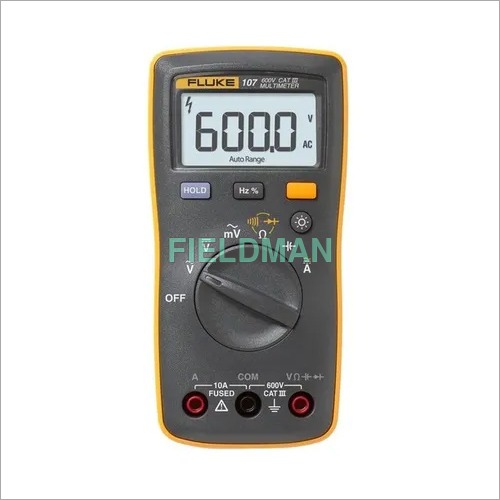

Fluke 107 Palm-sized Digital Multimeter

Fluke 107 Palm-sized Digital Multimeter
Fluke 107 Palm-sized Digital Multimeter
Send Inquiry
Product Code : Fluke Multimeter_107
Brand Name : FLUKE
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 4728 INR
Product Specifications
  • Dimensions
  • 142 mm x 69 mm x 28mm Millimeter (mm)
  • Usage
  • Digital multimeter
  • Machine Weight
  • 500grms Kilograms (kg)
  • Power
  • 2AAA Battery Statampere (sA)
Product Description
We offer" FLUKE"

Fluke 107 Palm-sized Digital Multimeter

The Fluke 107 digital multimeter is made to fit the way you work! It is designed to fit in the palm of your hand and go with you no matter where your job takes you.





Accuracy Specifications

Function

Range

Resolution

Accuracy

AC Volts
(40 Hz to 500Hz)1

6.000 V
60.00 V
600.0 V

0.001 V
0.01 V
0.1 V

1.0 % + 3

DC Volts

6.000 V
60.00 V
600.0 V

0.001 V
0.01 V
0.1 V

0.5 % + 3

AC Millivolts

600.0 mV

0.1 mV

3.0 % + 3

Diode Test2

2.000 V

0.001 V

10 %

Resistance
(Ohms)

400.0 Ω
4.000 kΩ
40.00 kΩ
400.0 kΩ
4.000 MΩ
40.00 MΩ

0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ

0.5 % + 3
0.5 % + 2
0.5 % + 2
0.5 % + 2
0.5 % + 2
1.5% + 3

Capacitance3

50.00 nF
500.0 nF
5.000 μF
50.00 μF
500.0 μF
1000 μF

0.01 nF
0.1 nF
0.001 μF
0.01 μF
0.1 μF
1 μF

2 % + 5
2 % + 5
5 % + 5
5 % + 5
5 % + 5
5 % + 5

Frequency4
Hz
(10 Hz€“ 100 kHz)

50.00 Hz
500.0 Hz
5.000 kHz
50.00 kHz
100.0 kHz

0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz
0.1 kHz

0.1 % + 3

Duty Cycle4

1 % to 99 %

0.1 %

1 % typical 5

AC Current
(40 Hz to 200 Hz)

4.000 A
10.00 A

0.001 A
0.01 A

1.5 % + 3

DC Current

4.000 A
10.00 A

0.001 A
0.01 A

1.5 % + 3

  1. All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.

  2. Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA.

  3. Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 50 nF range).

  4. All AC, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified.

  5. Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10 % and 90 %

Function

Overload Protection

Input Impedance (Nominal)

Common Mode Rejection Ratio

Normal Mode Rejection Ratio

AC Volts

600 V1

>10 M <100 pF2

>60 dB at dc,
50 Hz or 60 Hz


AC Millivolts

600 mV

>1M, <100 pF

>80 dB at 50 Hz or 60 Hz


DC Volts

600 V1

>10 MΩ <100 pF

>100 dB at dc,
50 Hz or 60 Hz

>60 dB at 50 Hz or 60 Hz

  1. 6 x 105 V Hz Max

  2. For mV (AC), input impedance is approximately 1 M

General Specifications

Maximum Voltage Between any Terminal and Earth Ground

600 V

Display (LCD)

6000 counts, updates 3/sec

Battery Type

2 AAA, NEDA 24A, IEC LR03

Battery Life

200 hours minimum

Temperature

Operating

0°C to 40°C

Storage

-30°C to 60°C

Relative Humidity

Operating Humidity

Non-condensing when <10°C
90 % at 10°C to 30°C;75 % at 30°C to 40°C

Operating Humidity, 40 MÎ Range

80 % at 10°C to 30°C; 70 % at 30°C to 40°C

Altitude

Operating

2000 m

Storage

12,000 m

Temperature Coefficient

0.1 X (specified accuracy) /°C (<18°C or >28°C)

Fuse Protection for Current Inputs

11A, 1000V Fast Fuse, Fluke specified part only

Size (HxWxL)

142 mm x 69 mm x 28mm

Weight

200 g

IP Rating

IEC 60529: IP 40

Safety

IEC 61010-1: 600 V CAT III, Pollution Degree 2

Electromagnetic Environment

IEC 61326-1: Portable

Electromagnetic Compatibility

Applies to use the Korea only.  Class A Equipment (Industrial Broadcasting and Communication Equipment)1



Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Delivery Time
  • 3-4days Days
  • Main Domestic Market
  • All India
