Home » Products » Fluke Products » Fluke 17B+ LCD Digital Multimeter Meter

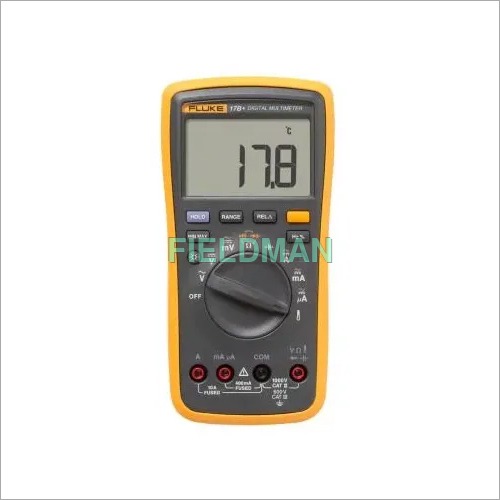

Fluke 17B+ LCD Digital Multimeter Meter

Fluke 17B+  LCD Digital Multimeter Meter
Fluke 17B+ LCD Digital Multimeter Meter
Send Inquiry
Product Code : Fluke 17B+
Brand Name : FLUKE
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 7779 INR
Product Specifications
  • Machine Weight
  • 1kg Kilograms (kg)
Product Description

FLUKE 17B+ Digital Multimeter specifications:

Frequency: 50Hz to 100Khz

  • Temperature: -55C to 400C

  • Capacitance: 0.01nF to 100uF

  • AC Volts: 0.1mV to 1,000V

  • DC Volts: 0.1mV to 1,000V

  • AC Current: 0.1uA to 10A

  • DC Current: 0.1UA to 10A

  • Resistance: 0.1 ohm to 40Mohm

  • Cycle: 0.1% to 99.9%

  • Data Hold Function

  • Both Auto range and Manual range Selectable

  • Overrange protection for all ranges

  • Polarity Indication: Indicates negative polarity

  • Overflow Indication

  • Sleep Mode / Auto Power off / Low Battery Indication

  • Frequency: 50 / 500 / 5K /50K / 100KHz, +/- 0.1% + 3

  • Temperature: -55C to 400C, 2% to 9 % +/- 2C

  • Capacitance: 50nF / 200nF / 2uF / 20uF / 200uF / 20mF, +/-2% +5

  • DC Volt: 400mV / 4V / 40V / 400V / 1000V, +/-1.0% + 10

  • AC Volt: 400mV / 4V / 40V / 400V / 1000V, +/- 3.0% + 3

  • DC Current: 400uA / 4,000uA / 40mA / 400mA / 4A / 10A, +/- 1.5% + 3

  • AC Current: 400uA / 4,000uA / 40mA / 400mA / 4A / 10A, +/- 1.5% + 3

  • Resistance: 400 / 4K / 40K / 400K / 4M / 40M Ohm, +/- 0.5% + 3

  • Duty Cycle: 0.1% to 99.9%, +/-1%

  • Continuity Test with Alert

  • Diode Test

  • Powered by 2 x AA 1.5V Battery (included)

  • Accessories: Test leads, 260C Thermo Probe, English Operation Manual
  • Dimensions: 6.81 in x 2.99 in x 1.3 in
  • Weight: 15.20 oz (431g)

Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Delivery Time
  • 3-4days Days
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • All India
  • Certifications
  • NA
