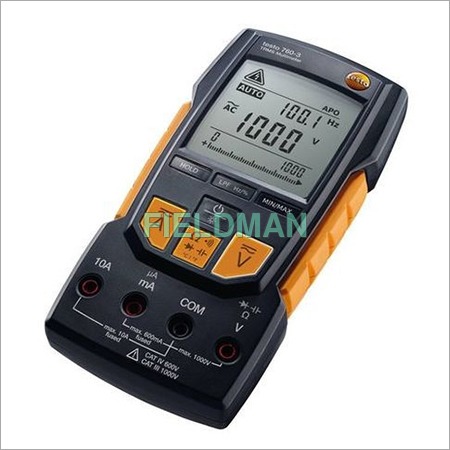

TRMS Digital Multimeter 760-3
Next > >
TRMS Digital Multimeter 760-3
Product Code : Testo 760-3
Brand Name : TESTO
Price And Quantity
- Minimum Order Quantity
- 1
- Unit of Measure
- Piece/Pieces
- Price Range
- Price
- 17569 INR
Product Specifications
- Dimensions
- 167 x 85 x 45 mm Millimeter (mm)
- Test Range
- AC/DC 1000V
- Usage
- True-RMS Digital multimeter
- Machine Weight
- 500grms Kilograms (kg)
Product Description
Product Description
The testo 760-3 digital multimeter is the multitasker for all important professionals in the electricity sector. It enables you to carry out both simple and demanding electrical measuring tasks more reliably than ever before. The testo 760-3 automatically detects the appropriate measurement parameter via the socket assignment and so prevents dangerous incorrect settings.
A voltage range of up to 1,000 V, a frequency range of up to 30 MHz and capacitance of up to 60,000 µF mean the testo 760-3 multimeter can also be used for industrial applications, such as troubleshooting in large electrical systems. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters. You will need the clip-on type K thermocouple adapter and a temperature probe (both items can be ordered separately).
| Temperature - TC Type K (NiCr-Ni) | |
|---|---|
|
Measuring range |
-20 to +500 °C |
|
Accuracy |
±1 °C (0 to +100 °C) |
|
Resolution |
0.2 °C |
| General technical data | |
|---|---|
|
Dimensions |
167 x 85 x 45 mm |
|
Operating temperature |
-10 to +50 °C |
|
Protection class |
IP64 |
|
Storage temperature |
-15 to +60 °C |
|
Weight |
340 g |
|
Overvoltage Category |
CAT IV 600V; CAT III 1000V |
|
Authorizations |
TÃœV; CSA; CE |
| DC voltage | |
|---|---|
|
Measuring range / Resolution |
600 mV / 0.1 mV 6.000 V / 1 mV 60.00 V / 10 mV 600.0 V / 100 mV 1000 V / 1 V |
|
Accuracy |
± (0.8 % of mv + 3 Digit) |
| AC voltage | |
|---|---|
|
Measuring range / Resolution |
600 mV / 0.1 mV 6.000 V / 1 mV 60.00 V / 10 mV 600.0 V / 100 mV 1000 V / 1 V |
|
Accuracy |
± (0.8 % of mv + 3 Digit) |
| DC current | |
|---|---|
|
Measuring range / Resolution |
600 μA / 0.1 μA 6000 μA / 1 μA 60.00 mA / 10 μA 600.0 mA / 100 μA 6 A / 1 mA 10 A / 10 mA |
|
Accuracy |
± (1.5 % of mv + 5 Digit) |
| AC current | |
|---|---|
|
Measuring range / Resolution |
600 μA / 0.1 μA 6000 μA / 1 μA 60.00 mA / 10 μA 600.0 mA / 100 μA 6 A / 1 mA 10 A / 10 mA |
|
Accuracy |
± (1.5 % of mv + 5 Digit) |
| Resistance | |
|---|---|
|
Measuring range / Resolution |
60.00 Ohm / 0.01 Ohm 600.0 Ohm / 0.1 Ohm 6.000 kOhm / 1 Ohm 60.00 kOhm / 10 Ohm 600.0 kOhm / 100 Ohm 6.000 MOhm / 1 kOhm 60.00 MOhm / 10 kOhm |
|
Accuracy |
± (1.5 % of mv + 3 Digit) |
| Capacitance | |
|---|---|
|
Measuring range / Resolution |
6.000 nF / 0.001 nF 60.00 nF / 0.01 nF 600.0 nF / 0.1 nF 6.000 μF / 0.001 μF 60.00 μF / 0.01 μF 600.0 μF / 0.1 μF 6.000 mF / 1 μF 60.00 mF / 10 μF |
|
Accuracy |
± (0.5 % of mv + 3 Digit) |
| Frequency | |
|---|---|
|
Measuring range / Resolution |
600.0 Hz / 0.1 Hz 6.000 kHz / 1 Hz 60.00 kHz / 10 Hz 600.0 kHz / 100 Hz 6.000 MHz / 1 kHz 60.00 MHz / 10 kHz |
|
Accuracy |
± (0.1 % of mv + 1 Digit) |
| Instrument Measurement Functions | |
|---|---|
|
Diode test |
yes |
|
Continuity testing |
yes |
|
Current probe measurement with adapter |
yes |
|
Display ligthing |
yes |
|
Hold |
yes |
|
MinMax |
yes |
|
Temperature measurement with adapter |
yes |
|
True RMS |
yes |
|
Low-pass filter |
yes |
|
Duty cycle measurement |
yes |
|
Display (counts) |
6,000 |
Trade Information
- Payment Terms
- Cheque, Cash Advance (CA)
- Delivery Time
- 3-4days
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
- Certifications
- NA
