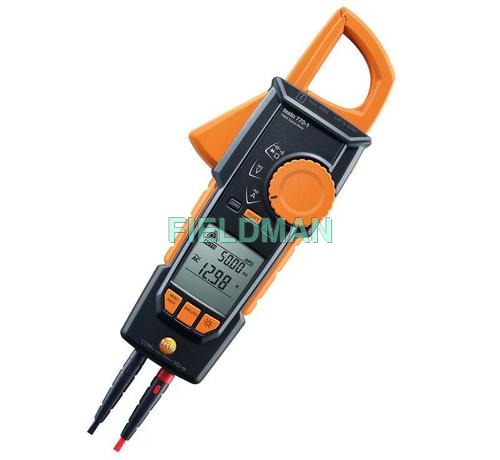

True RMS Clamp meter Testo 770-1

True RMS Clamp meter Testo 770-1
True RMS Clamp meter Testo 770-1
Product Code : Testo 770-1
Brand Name : TESTO
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • nos
Product Description

Product Description

This clamp meter means you can cope in any application environment, no matter how tight. The movable pincer arm can be fully retracted into the instrument, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. You have never been able to measure as conveniently as this in tight spots.

The operation of the testo 770-1 clamp meter is also easier and more reliable than ever before. It automatically detects and selects AC/DC and other electrical parameters, such as resistance, continuity, diode and capacitance. In addition, you can also use it to measure the starting current. And the two-line display presents your readings clearly and distinctly.

General technical data

Dimensions

243 x 96 x 43 mm

Operating temperature

-10 to +50 °C

Storage temperature

-15 to +60 °C

Weight

378 g

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

TÜV; CSA; CE

DC voltage

Measuring range / Resolution

4.000 V / 1 mV

40.00 V / 10 mV

400.0 V / 100 mV

600 V / 1 V

Accuracy

±(0.8 % of mv + 3 Digit)

AC voltage

Measuring range / Resolution

4.000 V / 1 mV

40.00 V / 10 mV

400.0 V / 100 mV

600 V / 1 V

Accuracy

±(1.0 % of mv + 3 Digit)

DC current

Measuring range / Resolution

400 A / 0.1 A

Accuracy

±(2 % of mv + 5 Digit)

AC current

Measuring range / Resolution

400 A / 0.1 A

Accuracy

±(2 % of mv + 5 Digit)

Resistance

Measuring range / Resolution

400.0 Ohm / 0.1 Ohm

4.000 kOhm / 1 Ohm

40.00 kOhm / 10 Ohm

400.0 kOhm / 100 Ohm

4.000 MOhm / 1 kOhm

40.000 MOhm / 10 kOhm

Accuracy

±(1.5 % of mv + 3 Digit)

Capacitance

Measuring range / Resolution

51.20 nF / 0.01 nF

512.0 nF / 0.1 nF

5.120 μF / 0.001 μF

51.20 μF / 0.01 μF

100 μF / 0.1 μF

Accuracy

±(1.5 % of mv + 5 Digit)

Frequency

Measuring range / Resolution

99.99 Hz / 0.01 Hz

999.9 Hz / 0.1 Hz

9.999 kHz / 1 Hz

Accuracy

±(0.1 % + 1 Digit)

Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

True RMS

yes

Inrush current measurement

yes

Display (counts)

4,000
