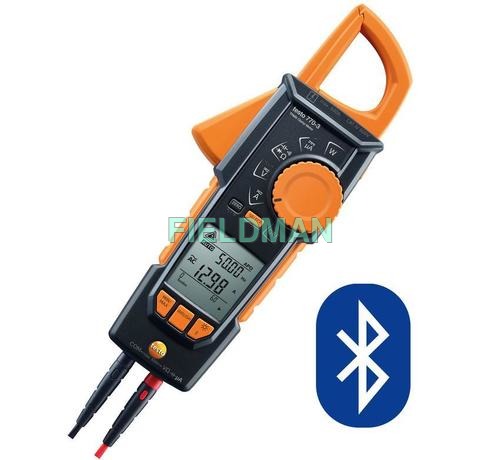

True RMS Clamp meter with Bluetooth Testo 770-3

True RMS Clamp meter with Bluetooth Testo 770-3
True RMS Clamp meter with Bluetooth Testo 770-3
Product Code : Testo 770-3
Brand Name : TESTO
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • nos
Product Description

Product Description

The testo 770-3 clamp meter is the ideal clamp amperemeter for demanding measuring tasks in tight application environments. The movable pincer arm can be fully retracted into the instrument. This enables the instrument to grab tightly packed cables in a particularly accurate way.

In addition, more specialized applications can be handled using the clamp meter, such as starting current, power and µA measurements. The supplied temperature adapter for thermocouple probes can be used to measure electrical parameters as well as temperatures (compatible type K thermocouple probe can be ordered separately).

The clamp amperemeter automatically detects and selects AC/DC and other parameters, such as resistance, continuity, diode and capacitance,. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display. In addition to this, the testo 770-3 offers a performance measurement function and can be connected via Bluetooth to the testo Smart Probes App. In the App, the measurement curve can be displayed as a graph on your smartphone/tablet and directly documented in the report.



Temperature - TC Type K (NiCr-Ni)

Measuring range

-20 to +500 °C

Accuracy

±1 °C (0 to +100 °C)

Resolution

0.2 °C

General technical data

Dimensions

243 x 96 x 43 mm

Operating temperature

-10 to +50 °C

Storage temperature

-15 to +60 °C

Weight

378 g

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

TÜV; CSA; CE

DC voltage

Measuring range / Resolution

6.000 V / 1 mV

60.00 V / 10 mV

600.0 V / 100 mV

Accuracy

± (0.8 % of mv + 3 Digit)

AC voltage

Measuring range / Resolution

6.000 V / 1 mV

60.00 V / 10 mV

600.0 V / 100 mV

Accuracy

± (0.8 % of mv + 3 Digit)

DC current

Measuring range / Resolution

600 A / 0.1 A

Accuracy

± (2 % of mv + 5 Digit)

AC current

Measuring range / Resolution

600 A / 0.1 A

Accuracy

± (2 % of mv + 5 Digit)

Resistance

Measuring range / Resolution

60.00 Ohm / 0.01 Ohm

600.0 Ohm / 0.1 Ohm

6.000 kOhm / 1 Ohm

60.00 kOhm / 10 Ohm

600.0 kOhm / 100 Ohm

6.000 MOhm / 1 kOhm

60.00 MOhm / 10 kOhm

Accuracy

± (1.5 % of mv + 3 Digit)

Capacitance

Measuring range / Resolution

6.000 nF / 0.001 nF

60.00 nF / 0.01 nF

600.0 nF / 0.1 nF

6.000 μF / 0.001 μF

60.00 μF / 0.01 μF

600.0 μF / 0.1 μF

6.000 mF / 1 μF

60.00 mF / 10 μF

Accuracy

± (1.5 % of mv + 5 Digit)

Frequency

Measuring range / Resolution

99.99 Hz / 0.01 Hz

999.9 Hz / 0.1 Hz

9.999 kHz / 1 Hz

Accuracy

± (1.0 % of mv + 1 Digit)

Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Power Measurement

yes

Temperature measurement with adapter

yes

True RMS

yes

Inrush current measurement

yes

Bluetooth

yes

Display (counts)

6,000
