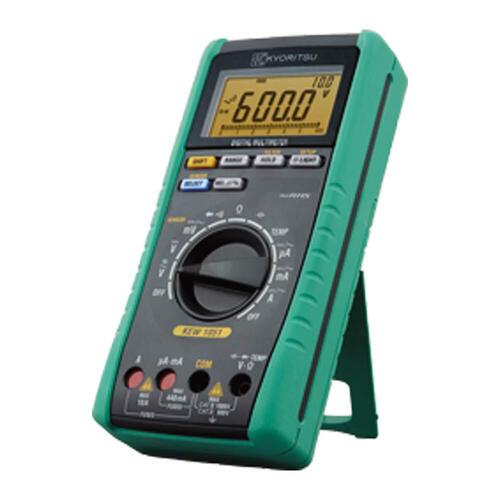

Digital Multimeter KEW 1051

Name: Digital Multimeter KEW 1051
Brand: FIELDMAN CONTROL SYSTEM
Price: 47067.0 INR
Availability: InStock

Price 47067.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Digital Multimeter KEW 1051 Specification

Operating Voltage
Battery operated (9V)

Automation Grade
Manual

Power Supply
6F22 9V battery

Equipment Type
Digital Multimeter

Interface Type
Test leads

Temperature
0C to 40C

Accuracy
(0.7%+3) on DCV ranges

Application
Electrical measurements

Resolution
Max. 4,199 counts

Display Type
LCD, 4199 count

Measuring Range
AC/DC Voltage: up to 1000V, Current: up to 10A, Resistance: up to 60M

Mounting Type
Handheld

Humidity
Max 80% RH

Frequency
40Hz to 1kHz (ACV)

Features
Auto range, data hold, backlight, low battery indication

Test Range
ACV: 0 to 1000V, DCV: 0 to 1000V, ACA: 0 to 10A, DCA: 0 to 10A, Resistance: 0 to 60M

Usage
Portable electrical testing

Machine Weight
Approx. 300 g (including battery)

Control Mode
Manual

Relative Humidity
Max. 80% RH

Input Impedance
Approx. 10M (DCV)

Safety Rating
CAT III 600V, CAT II 1000V

Diode Test
Yes

Overload Protection
Fuse protected

Backlight Display
Yes

Continuity Test
Yes, with buzzer

Model Number
KEW 1051

Low Battery Indicator
Yes

Dimensions
170mm x 80mm x 35mm

Storage Temperature
-10C to 50C

Max Display
4199 digits

Sampling Rate
3 times/sec

Compliance
IEC 61010-1

Digital Multimeter KEW 1051 Trade Information

Minimum Order Quantity
1 Piece

Main Domestic Market
All India

About Digital Multimeter KEW 1051

Digital Multimeter - KEW1051

For Electrical and Electronic Troubleshooting
High Accuracy, High Performance and Reliable Measurements
Large display with 6,000 counts
True-RMS Measurements
Low-pass filter for motor drive measurements
User Test function
Safety design for industrial use

High Accuracy and Wide Measurement Range

The KEW 1051 provides highly accurate measurements with (0.7%+3) accuracy on DC voltage ranges. Its user-friendly design allows you to measure AC/DC voltage (up to 1000V), current (up to 10A), and resistance (up to 60M), meeting most electrical troubleshooting needs. The data hold function and clear backlit display support efficient field operations even in dim environments.

Reliable Safety and Compliance

Engineered with CAT III 600V and CAT II 1000V safety ratings, this digital multimeter offers confidence during high-voltage work. Fuse protection and compliance with IEC 61010-1 international safety standards ensure safe operation for both professionals and hobbyists, making it suitable for various electrical environments.

Designed for Convenience and Portability

Weighing approximately 300g and featuring ergonomic dimensions, the KEW 1051 is easy to carry and operate with one hand. Its manual control mode, easy interface, and robust build make it ideal for portable fieldwork, routine inspections, or educational purposes, wherever reliable electrical measurements are required.

FAQ's of Digital Multimeter KEW 1051:

Q: How do I use the KEW 1051 to test voltage or current?

A: Select the suitable measurement mode (ACV, DCV, ACA, or DCA) using the rotary switch. Connect the test leads to the circuit under test, and read the measured value directly from the backlit LCD display. Always ensure the range and safety category match your application before proceeding.

Q: What safety features does the KEW 1051 digital multimeter offer during electrical testing?

A: The KEW 1051 is designed with fuse overload protection and safety ratings of CAT III 600V and CAT II 1000V. It also complies with IEC 61010-1, minimizing risks of electrical shock or damage when used according to guidelines.

Q: When should I replace the batteries in this multimeter?

A: Replace the 6F22 9V battery when the low battery indicator appears on the display, ensuring uninterrupted and accurate measurement performance during use.

Q: Where can the KEW 1051 be used for electrical measurements?

A: This digital multimeter is suitable for various environments, such as homes, laboratories, industrial sites, and educational institutions. Its robust build and portable design make it ideal for field technicians, electricians, and distributors.

Q: What is the process for performing a continuity or diode test using the KEW 1051?

A: Set the rotary knob to the respective continuity or diode test mode. Place the test leads across the component or connection. For continuity, a buzzer sound confirms a closed circuit, while for diodes, the display shows the forward voltage.

Q: How does the data hold and backlight function benefit users?

A: The data hold feature enables users to freeze the displayed value for easier recording, and the backlight ensures clear readings in low-light or enclosed spaces, enhancing visibility and safety during measurements.
