Product Description

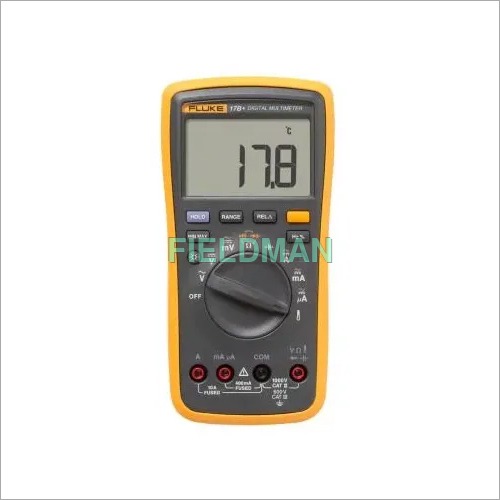

FLUKE 17B+ Digital Multimeter specifications:
- Frequency: 50Hz to 100Khz
- Temperature: -55C to 400C
- Capacitance: 0.01nF to 100uF
- AC Volts: 0.1mV to 1,000V
- DC Volts: 0.1mV to 1,000V
- AC Current: 0.1uA to 10A
- DC Current: 0.1UA to 10A
- Resistance: 0.1 ohm to 40Mohm
- Cycle: 0.1% to 99.9%
Data Hold Function
- Both Auto range and Manual range Selectable
- Overrange protection for all ranges
- Polarity Indication: Indicates negative polarity
Overflow Indication
- Sleep Mode / Auto Power off / Low Battery Indication
- Frequency: 50 / 500 / 5K /50K / 100KHz, +/- 0.1% + 3
- Temperature: -55C to 400C, 2% to 9 % +/- 2C
- Capacitance: 50nF / 200nF / 2uF / 20uF / 200uF / 20mF, +/-2% +5
- DC Volt: 400mV / 4V / 40V / 400V / 1000V, +/-1.0% + 10
- AC Volt: 400mV / 4V / 40V / 400V / 1000V, +/- 3.0% + 3
- DC Current: 400uA / 4,000uA / 40mA / 400mA / 4A / 10A, +/- 1.5% + 3
- AC Current: 400uA / 4,000uA / 40mA / 400mA / 4A / 10A, +/- 1.5% + 3
- Resistance: 400 / 4K / 40K / 400K / 4M / 40M Ohm, +/- 0.5% + 3
- Duty Cycle: 0.1% to 99.9%, +/-1%
- Continuity Test with Alert
Diode Test
- Powered by 2 x AA 1.5V Battery (included)
- Accessories: Test leads, 260C Thermo Probe, English Operation Manual
- Dimensions: 6.81 in x 2.99 in x 1.3 in
- Weight: 15.20 oz (431g)
