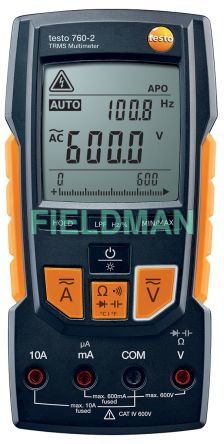

TRMS Digital Multimeter 760-2

TRMS Digital Multimeter 760-2
TRMS Digital Multimeter 760-2
Send Inquiry
Product Code : Testo 760-2
Brand Name : TESTO
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • 13150 INR
Product Specifications
  • Power Supply
  • 3 AAA Battery
  • Test Range
  • AC/DC 600V
  • Dimensions
  • 167 x 85 x 45 mm Millimeter (mm)
  • Usage
  • True-RMS Digital multimeter
  • Machine Weight
  • 500grms
  • Power
  • 3 AAA Battery
Product Description

Product Description

The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.

It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.

The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters.

Temperature - TC Type K (NiCr-Ni)

Measuring range

-20 to +500 °C

Accuracy

±1 °C (0 to +100 °C)

Resolution

0.2 °C

General technical data

Dimensions

167 x 85 x 45 mm

Operating temperature

-10 to +50 °C

Protection class

IP64

Storage temperature

-15 to +60 °C

Weight

340 g

Overvoltage Category

CAT III 1000V; CAT IV 600V

Authorizations

CSA; TÃœV; CE

DC voltage

Measuring range / Resolution

600 mV / 0.1 mV

6.000 V / 1 mV

60.00 V / 10 mV

600.0 V / 100 mV

Accuracy

± (0.8 % of mv + 3 Digit)

AC voltage

Measuring range / Resolution

600 mV / 0.1 mV

6.000 V / 1 mV

60.00 V / 10 mV

600.0 V / 100 mV

Accuracy

± (0.8 % of mv + 3 Digit)

DC current

Measuring range / Resolution

600 μA / 0.1 μA

6000 μA / 1 μA

60.00 mA / 10 μA

600.0 mA / 100 μA

6 A / 1 mA

10 A / 10 mA

Accuracy

± (1.5 % of mv + 5 Digit)

AC current

Measuring range / Resolution

600 μA / 0.1 μA

6000 μA / 1 μA

60.00 mA / 10 μA

600.0 mA / 100 μA

6 A / 1 mA

10 A / 10 mA

Accuracy

± (1.5 % of mv + 5 Digit)

Resistance

Measuring range / Resolution

60.00 Ohm / 0.01 Ohm

600.0 Ohm / 0.1 Ohm

6.000 kOhm / 1 Ohm

60.00 kOhm / 10 Ohm

600.0 kOhm / 100 Ohm

6.000 MOhm / 1 kOhm

60.00 MOhm / 10 kOhm

Accuracy

± (1.5 % of mv + 3 Digit)

Capacitance

Measuring range / Resolution

6.000 nF / 0.001 nF

60.00 nF / 0.01 nF

600.0 nF / 0.1 nF

6.000 μF / 0.001 μF

60.00 μF / 0.01 μF

600.0 μF / 0.1 μF

6.000 mF / 1 μF

30.00 mF / 10 μF

Accuracy

± (0.5 % of mv + 3 Digit)

Frequency

Measuring range / Resolution

600.0 Hz / 0.1 Hz

6.000 kHz / 1 Hz

60.00 kHz / 10 Hz

600.0 kHz / 100 Hz

6.000 MHz / 1 kHz

30.00 MHz / 10 kHz

Accuracy

± (0.1 % of mv + 1 Digit)

Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Current probe measurement with adapter

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Temperature measurement with adapter

yes

True RMS

yes

Low-pass filter

yes

Duty cycle measurement

yes

Display (counts)

6,000



Trade Information
  • Payment Terms
  • Cash Advance (CA)
  • Delivery Time
  • 3-4days
  • Main Domestic Market
  • All India
